(S-467) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: C024 / S410 / S405 / S405N / SC10400 / SC10411 / SP4001

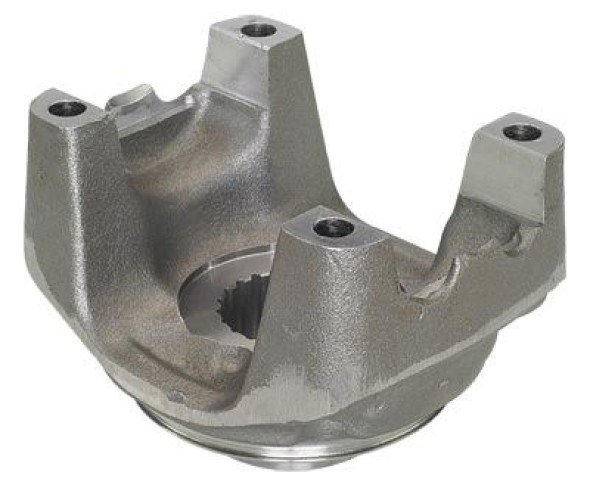

Description: END YOKE 22 SPLINE (E) P500 / P520 THREAD M12X1,75MM
Applications:
- Diferencial
- Central
Material: Nodular
Original code: 1325906 / 528989
Original code: 201081 | ST61 | 1325906 | S410
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzeta sem Travas Comprimento da cruzeta sem travas |
Ø Cruzeta |
Rosca |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-467 | SCANIA, SCANIA | Central, Diferencial | 132,00 | 85,00 | C-024 / 5-12072X | 164,00 | 57,00 | M12X1,75 | 24-E | 56,25 | 59,70 |
