(S-466) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S407 / S424

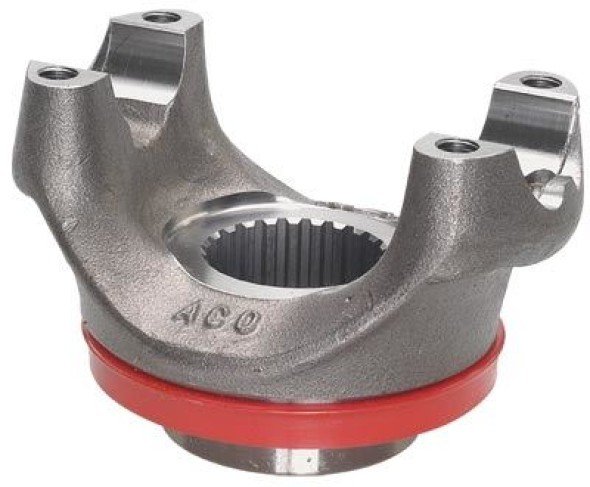

Description: END YOKE 24 SPLINE (E) THREAD M14X2,0MM
Applications:
- Diferencial
Código original: 1676722
Material: Nodular
Código original: 1676722
Material: Nodular
| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Thread | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S-466 | 5-12278X | 115,5 | 85 | 50 | 24-E | M14 | 164 | 56,25 | 59,7 |
