(S-464) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S-407

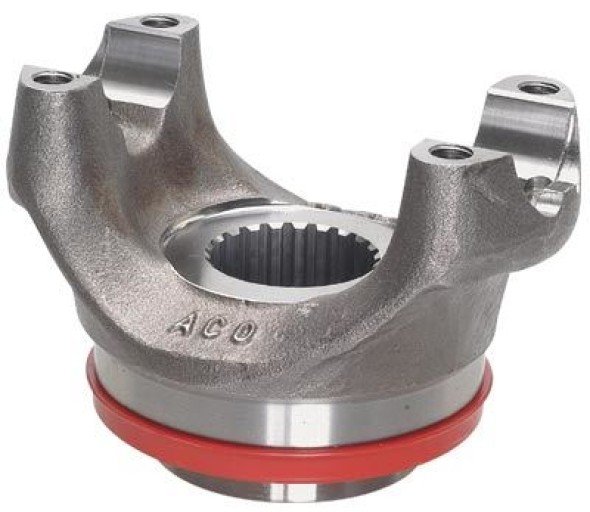

Description: END YOKE 22 SPLINE (E) THREAD M14X2,0MM
Applications:
- Diferencial
- Central
Material: Nodular
Original code: 208382 | 208513 | 202382 | 04360C | 04410 | 201100 | 801727 | FL1471 | ST56 | S415
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-464 | SCANIA | Central, Diferencial | 121,00 | 89,90 | 5-12278X | 164,00 | 50,00 | M14X2,00 | 22-E | 51,40 | 54,85 |
