(S-462) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S406 / S430

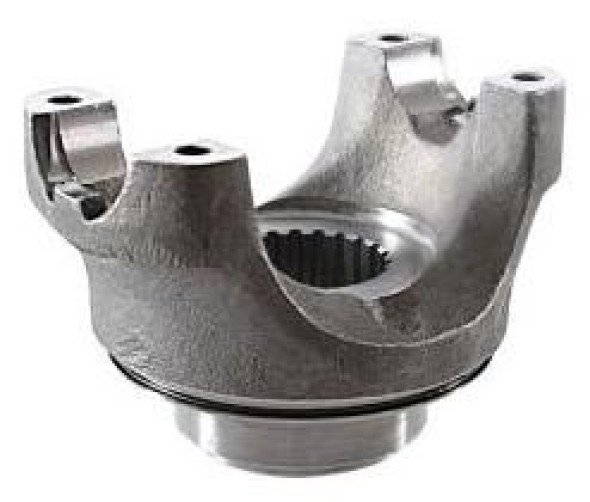

Description: END YOKE 22 SPLINE (E) THREAD M12X1,75MM
Applications:
- Cardan
Código original: 190027 / 202805
Material: Nodular
Código original: 190027 / 202805
Material: Nodular
| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Thread | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S-462 | 5-12276X | 112 | 79,9 | 44,1 | 22-E | M12 | 149 | 51,4 | 54,85 |
