(S-461) compatible with vehicles from the following manufacturers: VOLVO.
Assemble with: S445

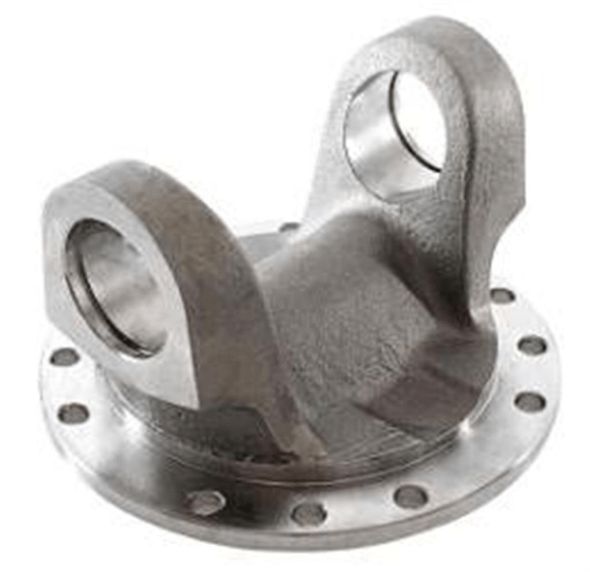

Description: FLANGE YOKE 12 HOLES
Applications:
- Cardan
Material: Nodular
Original code: 6885650
Original code: 101035 | SF17 | 6885650 | S445 | 02267
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-461 | VOLVO, VOLVO | Cardan | 203,50 | 83,50 | 164,00 | 512278X | 49,20 | 9,50 | 8 |
