(S-439) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: C024 / S438 / S440 / SC10371

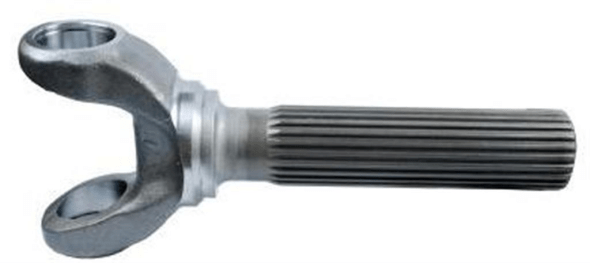

Description: YOKE SHAFT 34 SPLINE (E) SCANIA SERIE 4/5
Applications:
- Cardan Entre Diferenciais
Material: Steel
Extra: ENTRE DIFERENCIAIS
Original code: 41292
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Ø Base das estrias |
C (mm) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| S-439 | SCANIA | Cardan Entre Diferenciais | 373,00 | 64,40 | 163,70 | C-024 / 5-12072X | 57,00 | 24-E | 59,25 | 64,40 |
