(S-438) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S439 / S440 / SC10371

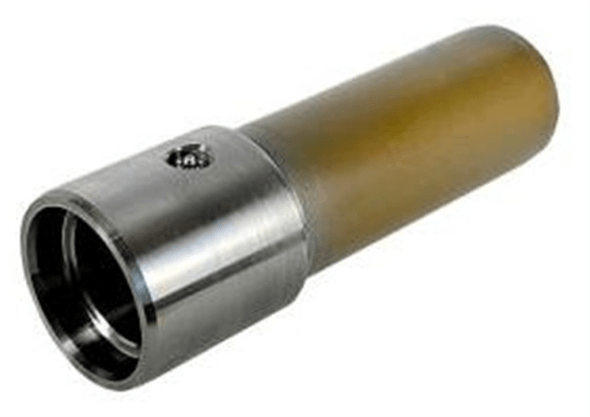

Description: SPLINED SLEEVE 24 SPLINE (E) SCANIA SERIE 4/5 WITH GREASE NIPPLE
Applications:
- Cardan
Material: Steel
Extra: COM RASPADOR E BICO GRAXEIRO
Original code: 41412
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento total |
B ( mm ) Comprimento da base ate o pescoço |
Ø C ( mm ) Ø Encaixe do garfo |
Ø D ( mm ) Ø Base da luveira |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-438 | SCANIA | Cardan | 298,00 | 264,00 | 82,25 | 83,30 | 24-E | 60,05 | 65,10 |
