(S-436) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: C024 / S405 / S405N / S418 / SC10400 / SC10411

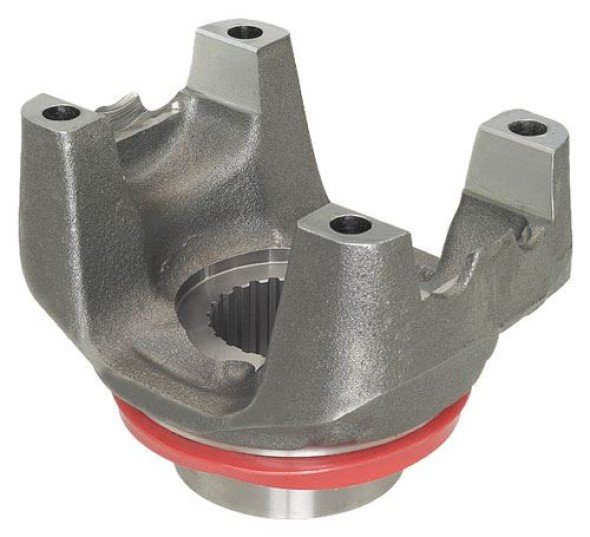

Description: END YOKE 22 SPLINE (E) P500 / P520 THREAD M12X1,75MM
Applications:
-
Extra: ARTICULAÇÃO MAIOR / Ø DO RETENTOR 80MM
Código original: 111661 / 385983 / 1325900
Material: Nodular
Código original: 111661 / 385983 / 1325900
Material: Nodular
| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Thread | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S-436 | 5-12072X | 134 | 80 | 57 | 22 - E | M12X1,75 | 163,9 | 51,4 | 54,85 |
