(S-434) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S408 / S408N / S409 / S416 / S416N / S431 / S450 / S451 / S838 / SC10380 / SC10400 / SC10408 / SC10411 / SP4001

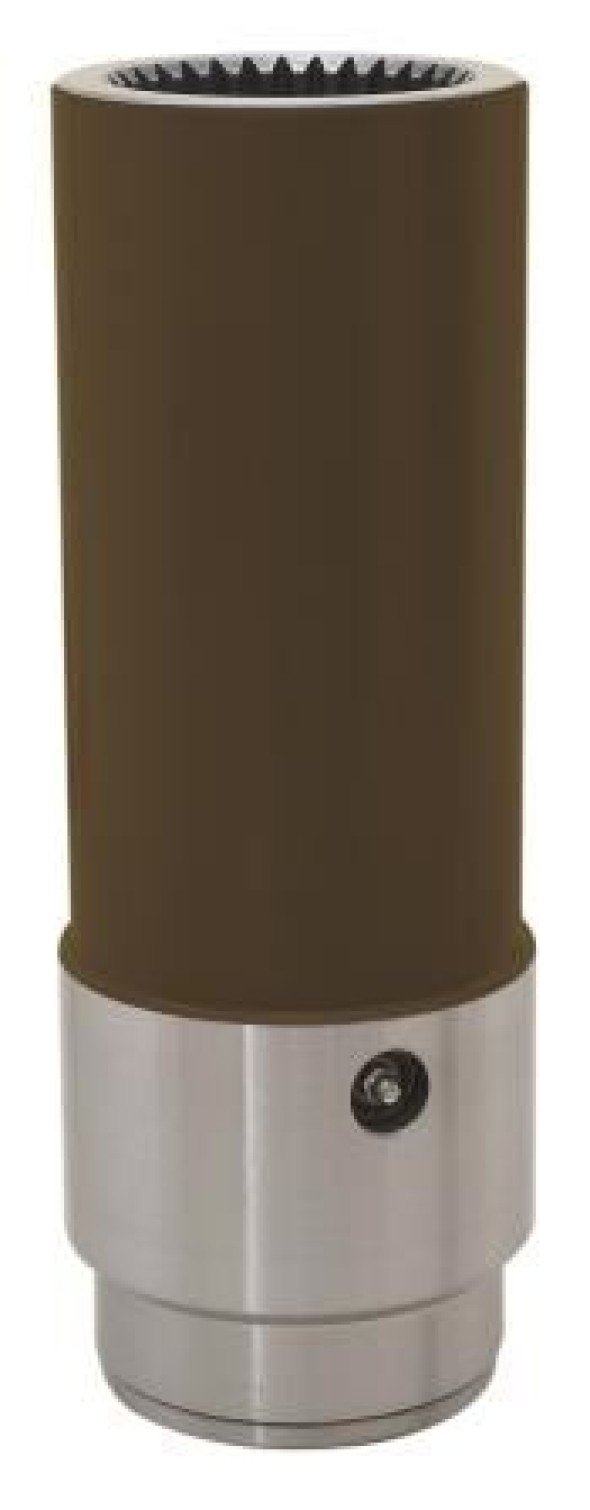

Description: SPLINED SLEEVE 32 SPLINE (E) WITH GREASE NIPPLE P600
Applications:
- Cardan
Material: Steel
Original code: 41141 | LV1455
| Reference | Manufacturer(s) | Segment | A ( mm ) Comprimento total |
B ( mm ) Comprimento base ate o pescoço |
Ø C ( mm ) encaixe do tubo |
Ø D ( mm ) Base da luveira |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-434 | SCANIA | Cardan | 323,50 | 290,00 | 104,00 | 105,20 | 32-E | 80,40 | 86,60 |
