(S-433) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: C024 / S626 / S405 / S405N

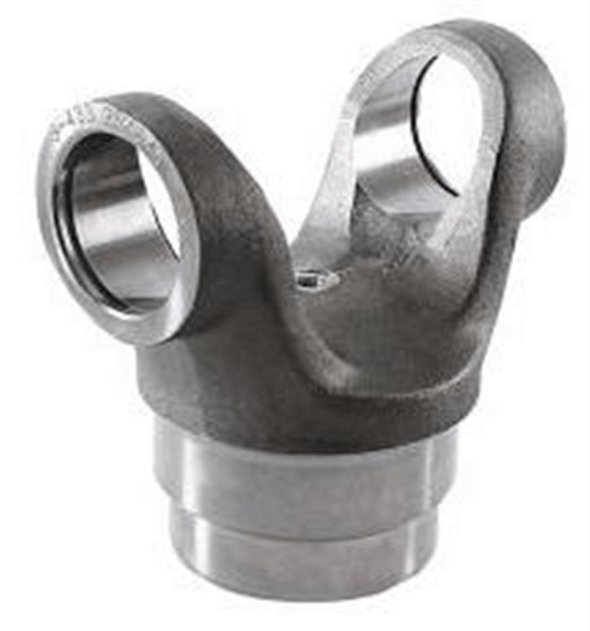

Description: WELD YOKE P500 / P520
Applications:
- Cardan
Material: Steel
Original code: 284399 | 26253 | 201115 | 41498 | 801320 | GR1433 | RGF637 | SG46
| Reference | Manufacturer(s) | Segment | A (mm) Base Solda Tubo Base Solda Tubo |
B (mm) Altura Encosto Solda ao Centro Olhal Altura Encosto Solda ao Centro Olhal |
C (mm) Comprom. Cruzetas s/ Travas Comprim. Cruzetas s/ Travas |
Cruzeta |
Cruzeta |
|---|---|---|---|---|---|---|---|
| S-433 | SCANIA | Cardan | 97,30 | 115,00 | 163,90 | C-024 / 5-12072X | 57,00 |
