(S-431) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: C007 / S409 / S434 / S408 / S408N / S416 / S416N / S435 / S450 / S451 / S838 / SC10380 / SC10400 / SC10408 / SC10411 / SP4001

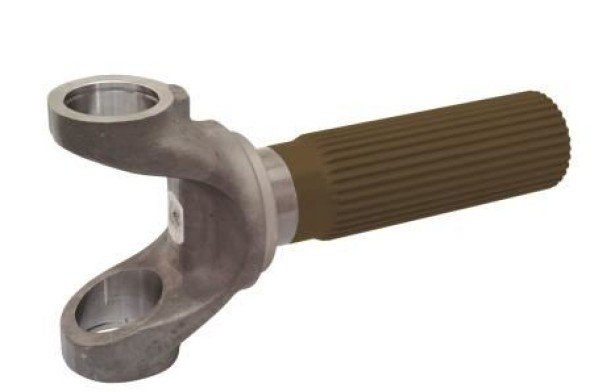

Description: YOKE SHAFT 32 SPLINE (E) P600
Applications:
- Cardan
Material: Steel
Extra: SÉRIE P600 / Nº ORIG. SCANIA DA CRUZETA: 1422422 / 1879540 / 2397362
Original code: PT1425 | 41140
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Ø Base das estrias |
C (mm) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| S-431 | SCANIA | Cardan | 383,50 | 84,00 | 189,70 | C-007 / CZ-280 | 65,00 | 32-E | 78,60 | 85,10 |
