(S-430) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S406 / S462

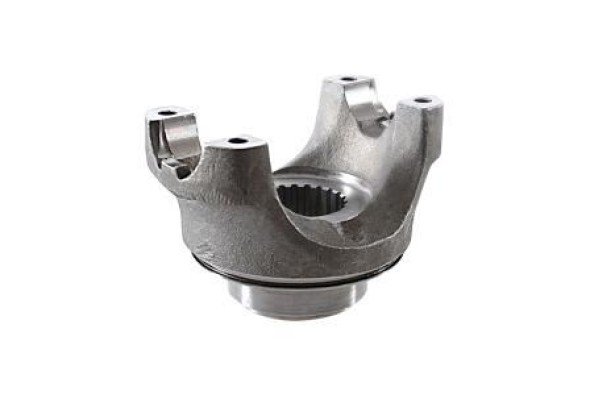

Description: END YOKE 22 SPLINE (E) THREAD M12X1,75MM
Applications:
- Central
Material: Steel
Original code: 190027 | 202805 | S462 | 04178C | 201099 | 801712 | FL1470 | HTM617
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-430 | SCANIA | Central | 112,00 | 79,90 | 5-12276X | 149,00 | 44,00 | M12X1,75 | 22-E | 51,40 | 54,85 |
