(S-426) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: C018 / S404 / S404N / SC10400 / SC10411

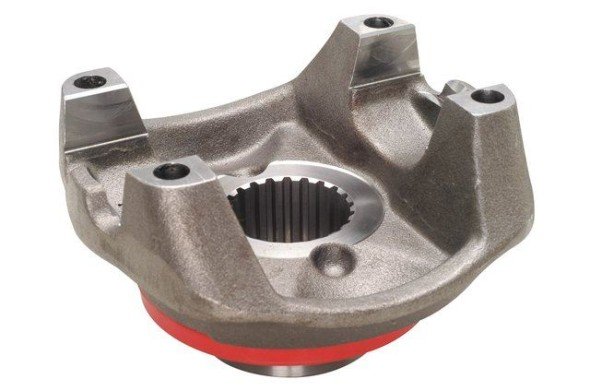

Description: END YOKE TRANSMISSION BOX 22 SPLINE (E) P400 / P410 / P420 THREAD M12X1,75MM
Applications:
- Cambio
Material: Steel
Original code: 201011
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzeta sem Travas Comprimento da cruzeta sem travas |
Ø Cruzeta |
Rosca |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-426 | SCANIA | Cambio | 112,00 | 80,00 | C-018 / 5-12062X | 160,90 | 48,00 | M12X1,75 | 22-E | 51,40 | 54,85 |
