(S-417) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S401 / S402 / S422 / S460 / SP4002

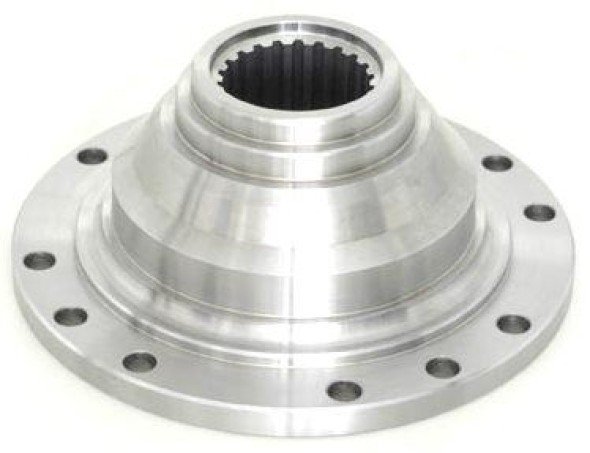

Description: COMPANION FLANGE 22 SPLINE (E) 12 HOLES
Applications:
- Central / Cambio
Material: Steel
Original code: 1672362 | 201070 | KPFLR2417 | SA23 | S460 | 01302
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Furos |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Menor |
|---|---|---|---|---|---|---|---|---|---|---|
| S-417 | SCANIA | Central / Cambio | 73,00 | 203,50 | 84,00 | 11,50 | 12 | 22-E | 51,40 | 54,85 |
