(S-416N) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: C007 / S408 / S408N / S409 / S435 / SC10400 / SC10408 / SC10411 / SP4001

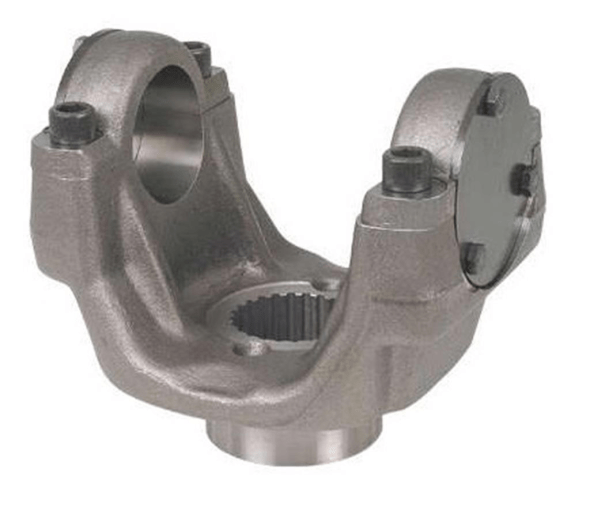

Description: END YOKE GEARBOX 22 SPLINE (E) P600
Applications:
- Cambio
Material: Nodular
Extra: CAMBIO: GRS900 / Nº ORIG. SCANIA DA CRUZETA: 1422422 / 1879540 / 2397362
Original code: 201116 | 801734 | FL1480 | 1319645
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da cruzetas sem travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-416N | SCANIA | Cambio | 140,00 | 80,00 | C-007 / 5-12949X / CZ-280 | 190,00 | 65,00 | M14X2,00 | 22-E | 51,40 | 54,85 |
