(S-414) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: S407 / S465

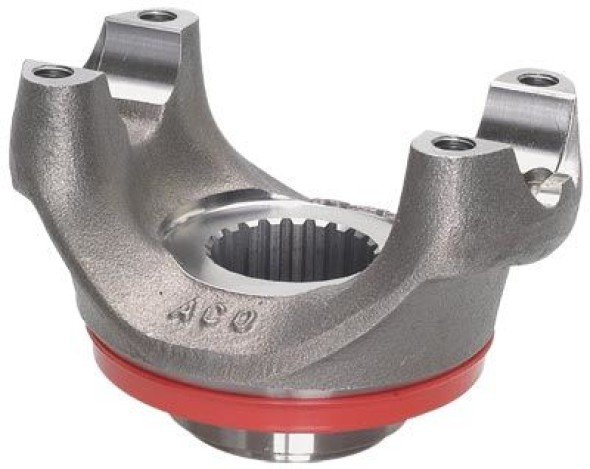

Description: END YOKE 22 SPLINE (E) THREAD M14X2,0MM
Applications:
- Diferencial
- Cambio
Material: Steel
Original code: 234084 | S465 | 04637C | 201101 | 801720 | FL1472 | ST57
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-414 | SCANIA | Cambio, Diferencial | 115,00 | 79,90 | 5-12278X | 164,00 | 50,00 | M14X2,00 | 22-E | 51,40 | 54,85 |
