(S-413) compatible with vehicles from the following manufacturers: VOLVO.
Assemble with: S201 / S202 / S459 / SC10358 / SP4005

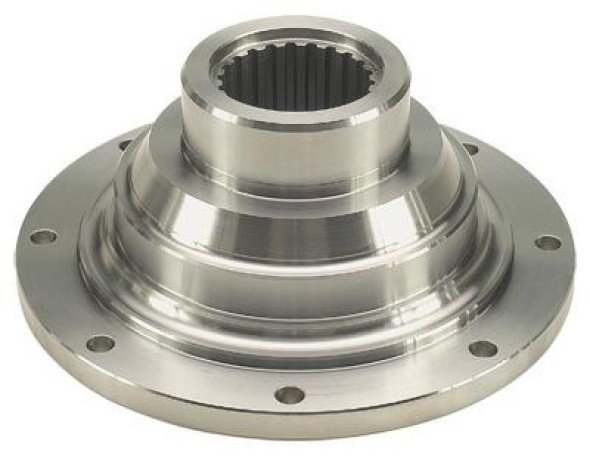

Description: COMPANION FLANGE 22 SPLINE (E) 8 HOLES
Applications:
- Central
Material: Steel
Original code: 6885148 | 101032 | KPFLR2413 | SA22 | S459 | 01517
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Furos |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Menor |
|---|---|---|---|---|---|---|---|---|---|---|
| S-413 | VOLVO | Central | 80,00 | 203,50 | 84,00 | 9,50 | 8 | 22-E | 51,40 | 54,85 |
