(S-411) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: C024 / S405 / S405N / S468 / SC10400 / SC10411

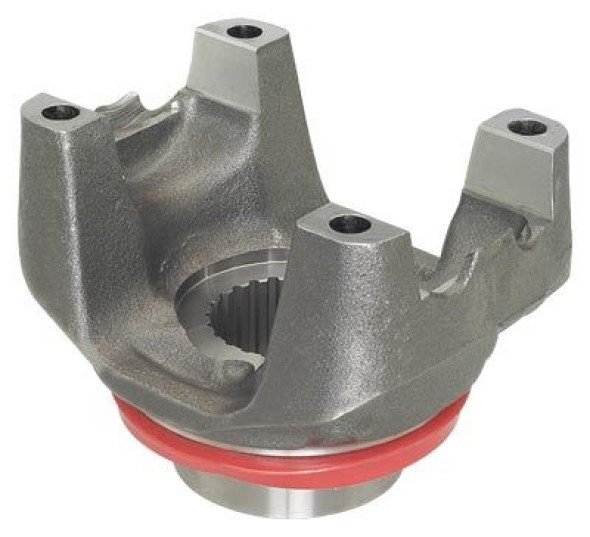

Description: END YOKE 22 SPLINE (E) P500 / P520 THREAD M12X1,75MM
Applications:
- Cambio / Diferencial
Material: Steel
Extra: ARTICULAÇÃO MAIOR / Ø DO RETENTOR 70MM
Original code: 201095 | 801733 | FL1477 | FL1479 | ST63 | 390237 | S468
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzeta sem Travas Comprimento da cruzeta sem travas |
Ø Cruzeta |
Rosca |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-411 | SCANIA | Cambio / Diferencial | 122,00 | 70,00 | C-024 / 5-12072X | 164,00 | 57,00 | M12X1,75 | 22-E | 51,40 | 54,85 |
