(S-408) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: C007 / S408N / S409 / S416 / S416N / S435 / SC10400 / SC10408 / SC10411 / SP4001

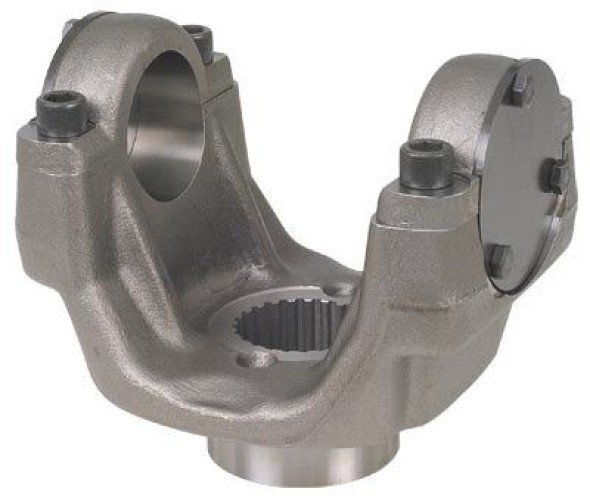

Description: END YOKE 24 SPLINE (E) P600
Applications:
- Diferencial
- Central
Material: Steel
Extra: Nº ORIG. SCANIA DA CRUZETA: 1422422 / 1879540 / 2397362
Original code: 201113 | 801729 | FL1474 | 1319646 | 1508401
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da cruzetas sem travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-408 | SCANIA | Diferencial, Central | 140,00 | 85,00 | C-007 / 5-12949X / CZ-280 | 190,00 | 65,00 | M14X2,00 | 24-E | 56,25 | 59,70 |
