(S-403) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: C024 / S403N / S405 / S405N / SP4003 / SC10400 / SC10411

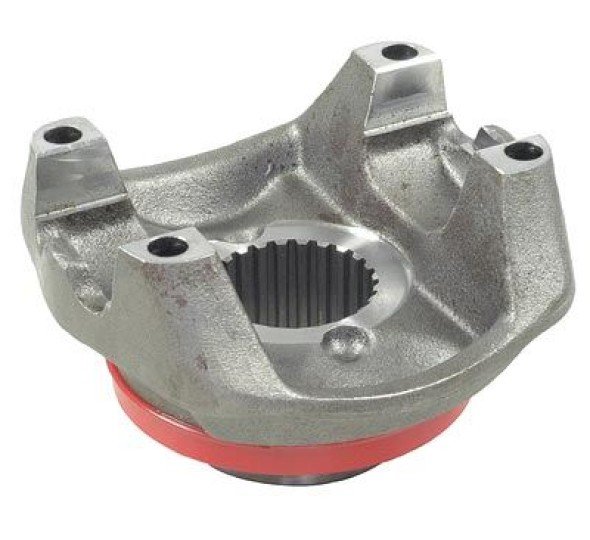

Description: END YOKE 24 SPLINE (E) THREAD M12X1,75MM P500 / P520
Applications:
- Diferencial
| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Thread | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S-403 | 5-12072X | 113,5 | 85 | 57 | 24 - E | M12X1,75 | 163,9 | 56,25 | 59,7 |
