(S-401) compatible with vehicles from the following manufacturers: SCANIA e VOLVO.
Assemble with: C015 / S402 / S412 / S422 / S458 / SC10358 / SP3018 / SP3020 / SP3051

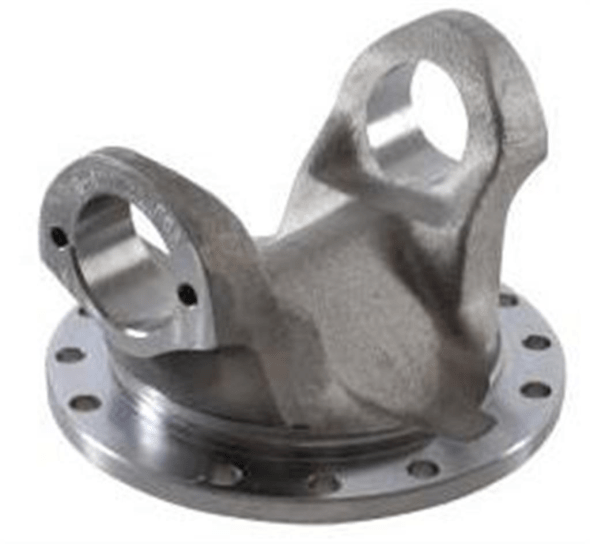

Description: FLANGE YOKE 12 HOLES
Applications:
- Cardan
Material: Steel
Original code: 201072 | 801207 | AT1057 | HFL605 | NC04011 | SF01 | 1672353 | 6885644 | S402 | 652329
Original code: 201072 | 801207 | AT1057 | HFL605 | NC04011 | SF01 | 1672353 | 6885644 | S402 | 6523
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-401 | SCANIA, VOLVO | Cardan | 203,50 | 87,00 | 191,80 | C-015 / 5281X | 49,20 | 11,50 | 12 |
