(S-400N) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: C018 / S400 / S404 / S404N / SP4006 / SC10400 / SC10411

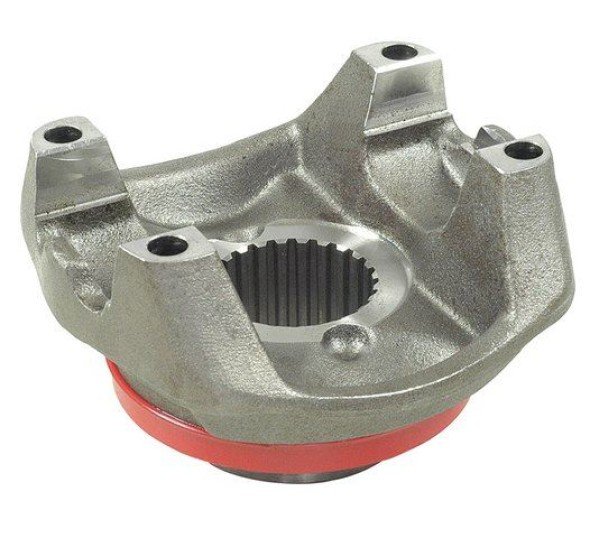

Description: END YOKE 24 SPLINE (E) P400 / P410 / P420 THREAD M12X1,75MM P400
Applications:
- Cambio / Central / Diferencial
Código original: 1308761 / 2117367
Material: Nodular
Código original: 1308761 / 2117367
Material: Nodular
| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Thread | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S-400N | 5-12062X | 113,5 | 85 | 48 | 24 - E | M12X1,75 | 160,9 | 56,25 | 59,7 |
