(S-400) compatible with vehicles from the following manufacturers: SCANIA.
Assemble with: C018 / S400N / S404 / S404N / SP4006 / SC10400 / SC10411

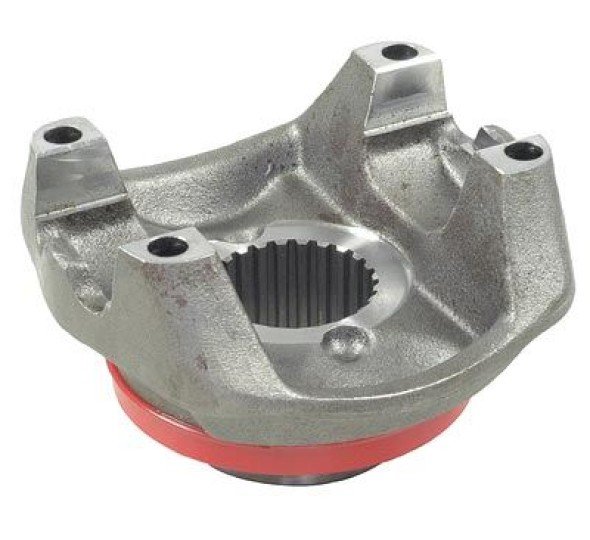

Description: END YOKE 24 SPLINE (E) P400 / P410 / P420 THREAD M12X1,75MM
Applications:
- Cambio / Central / Diferencial
Material: Steel
Original code: 1308761 | 2117367
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-400 | SCANIA | Cambio / Central / Diferencial | 113,50 | 85,00 | C-018 / 5-12062X | 160,90 | 48,00 | M12X1,75 | 24-E | 56,25 | 59,70 |
