(S-392) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S339 / S395 / S701 / SC10356 / SP3036 / SP3037 / SP3048

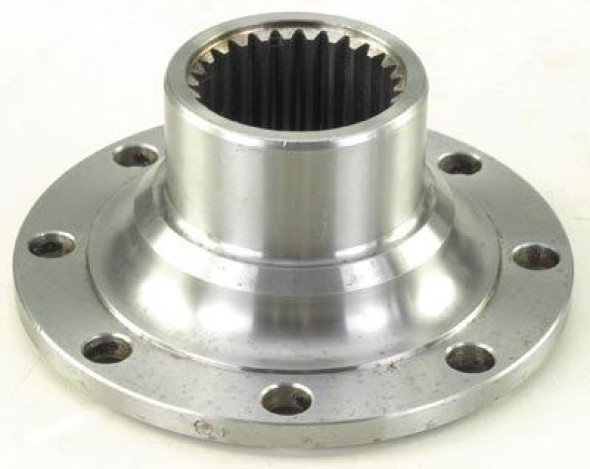

Description: COMPANION FLANGE 26 SPLINE (E) 8 HOLES
Applications:
- Diferencial
Material: Steel
Original code: 3603500445 | 35194 | 801803 | FL 1365 | SA04 | S706 | 01379C
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Furos |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Menor |
|---|---|---|---|---|---|---|---|---|---|---|
| S-392 | MERCEDES BENZ | Diferencial | 68,00 | 150,00 | 65,00 | 12,00 | 8 | 26-E | 50,30 | 55,20 |
