(S-391) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S322 / S312 / S354

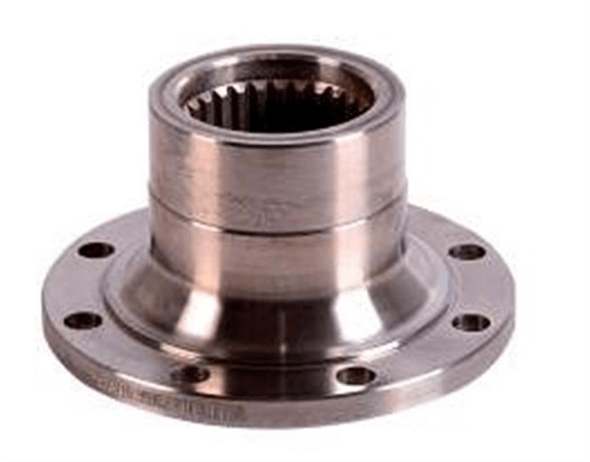

Description: COMPANION FLANGE 28 SPLINE (E) 8 HOLES
Applications:
- Diferencial
Material: Steel
Original code: 3853530145 | 35378 | SA42
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Furos |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Menor |
|---|---|---|---|---|---|---|---|---|---|---|
| S-391 | MERCEDES BENZ | Diferencial | 79,90 | 150,00 | 79,00 | 12,00 | 8 | 28-E | 56,40 | 60,25 |
