(S-389) compatible with vehicles from the following manufacturers: MERCEDES BENZ.

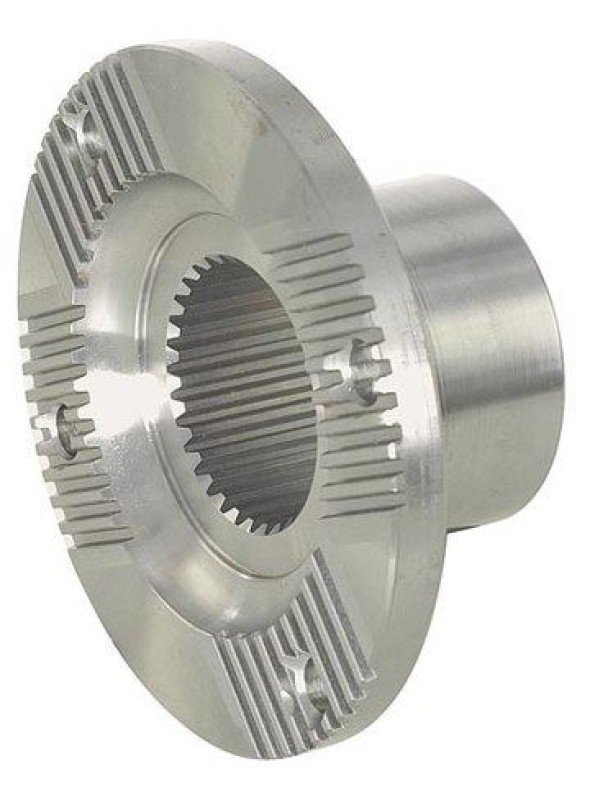

Description: COMPANION FLANGE 31 SPLINE (E) 4 HOLES
Applications:
- Diferencial
Material: Steel
Extra: ANO 2004 / DIFERENCIAIS: HD7/050 DCGS13 / HD7/052 DGS16 / HD7/016 DG13
Original code: 35321 | SA30 | 3463501445 | 3463501645
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-389 | MERCEDES BENZ | Diferencial | 85,00 | 200,00 | 96,00 | 15,50 | 31-E | 61,00 | 65,30 |
