(S-388) compatible with vehicles from the following manufacturers: MERCEDES BENZ e VOLVO.
Assemble with: C025 / S651 / S653 / SC10380

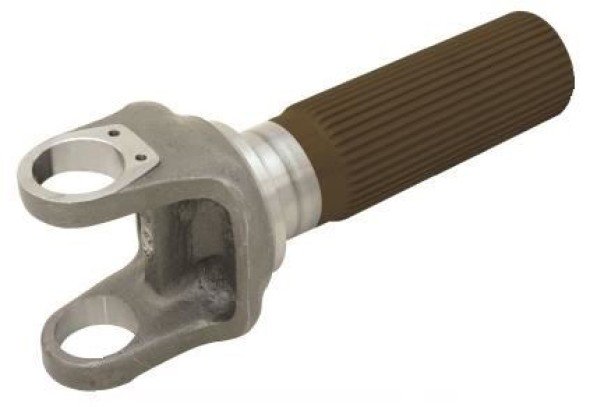

Description: YOKE SHAFT 34 SPLINE (E)
Applications:
- Cardan Entre Diferenciais
Material: Steel
Original code: 17082171X | 41011
Original code: 17082171X | 41011
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Ø Base das estrias |
C (mm) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| S-388 | MERCEDES BENZ, VOLVO | Cardan Entre Diferenciais | 380,00 | 87,20 | 166,00 | C-025 / SPL170-1X | 55,00 | 34-E | 81,60 | 87,20 |
