(S-385) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C004 / S329 / S300 / S307 / S309 / SC10342 / SC10358 / SP3004 / SP3009 / SP3010 / SP3050

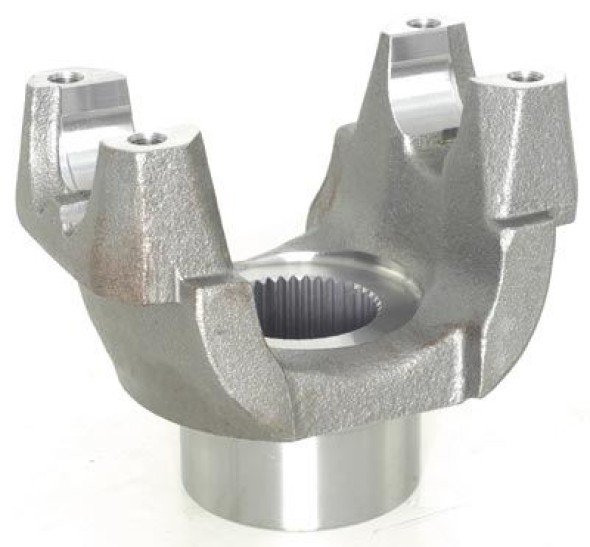

Description: END YOKE 39 SPLINE (E) THREAD M10X1,0MM
Applications:
- Diferencial
Material: Steel
Extra: DIFERENCIAIS: MS240 / MS245 / MS248
Original code: 0003530145 | 070068 | 41111 | 801739 | FL1385 | ST03A
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-385 | MERCEDES BENZ | Diferencial | 133,00 | 76,20 | C-004 / 5-438X | 134,90 | 47,60 | M10X1,00 | 39-E | 48,80 | 51,40 |
