(S-378) compatible with vehicles from the following manufacturers: VOLKSWAGEN e IVECO.

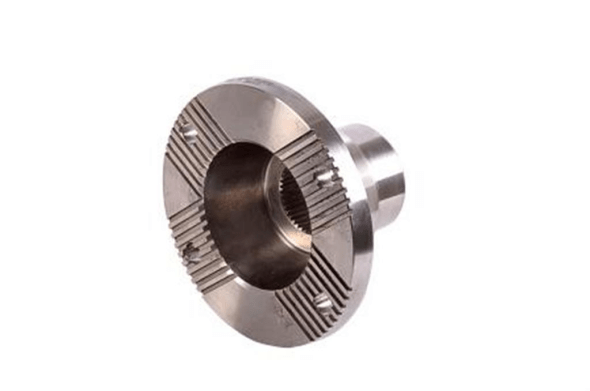

Description: COMPANION FLANGE 39 SPLINE (E) 4 HOLES - RECOMMENDED TIGHTENING ON THE M50X2 DIFFERENTIAL PINION NUT IS 1200 TO 1500Nm
Applications:
- Diferencial
Material: Steel
Extra: SAIDA DO 1º DIFERENCIAL / APERTO RECOMENDADO NA PORCA DO PINHÃO M50X2 DO DIFERENCIAL É DE 1200 A 1500Nm
Original code: 3260OT1840 | 35341 | SA20 | 2U2525283 | 93192046
Original code: 3260OT1840 | 35341 | SA20 | 2U2525283 | 93192046
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|
| S-378 | VOLKSWAGEN, IVECO | Diferencial | 76,20 | 180,00 | 109,50 | 15,50 | 39-E | 48,80 | 51,40 |
