(S-377) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN, CHEVROLET GMC, AGRALE e IVECO.
Assemble with: C004 / S301 / S306 / S309 / S370 / SC10343 / SC10350 / SC10358 / SP3004 / SP3009 / SP3010 / SP3050

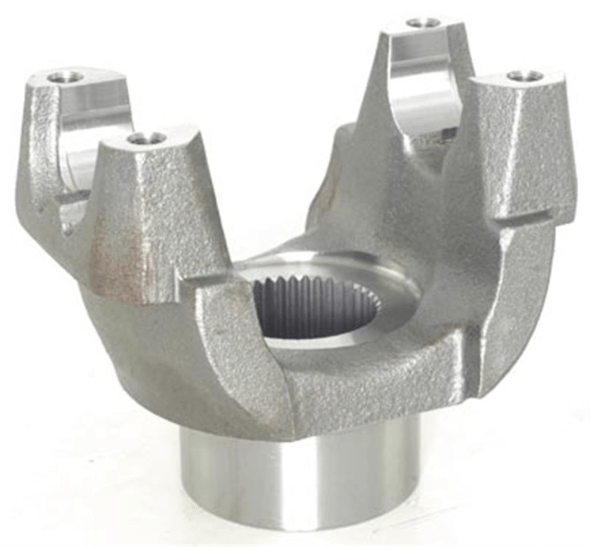

Description: END YOKE 39 SPLINE (E) THREAD 3/8"X24 F.P.P
Applications:
- Diferencial
Extra: DIFERENCIAIS: MS145 / MS240 / MS245 / MS155 / RS145 / RS155 / RS240
| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Thread | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S-377 | 5-438X | 133 | 76,2 | 47,6 | 39-E | 3/8" | 134,9 | 48,8 | 51,4 |
