(S-376) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S422 / SC10344 / SP3018 / SP3020

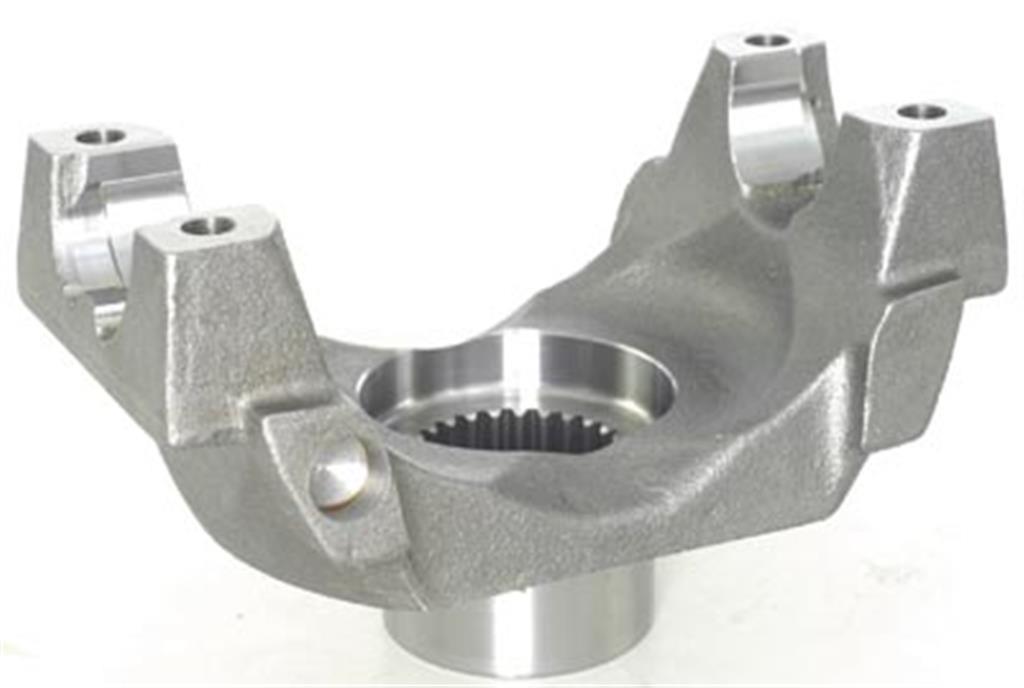

Description: END YOKE 26 SPLINE (E) THREAD 1/2"X20 F.P.P
Applications:
- Diferencial
Material: Steel
Original code: 6643537045 | 048691 | 35264 | ST32
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-376 | MERCEDES BENZ | Diferencial | 128,50 | 68,00 | 5-510X | 194,00 | 49,20 | 1/2"X20F.P.P | 26-E | 50,30 | 55,20 |
