(S-372) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C018 / S347 / S704

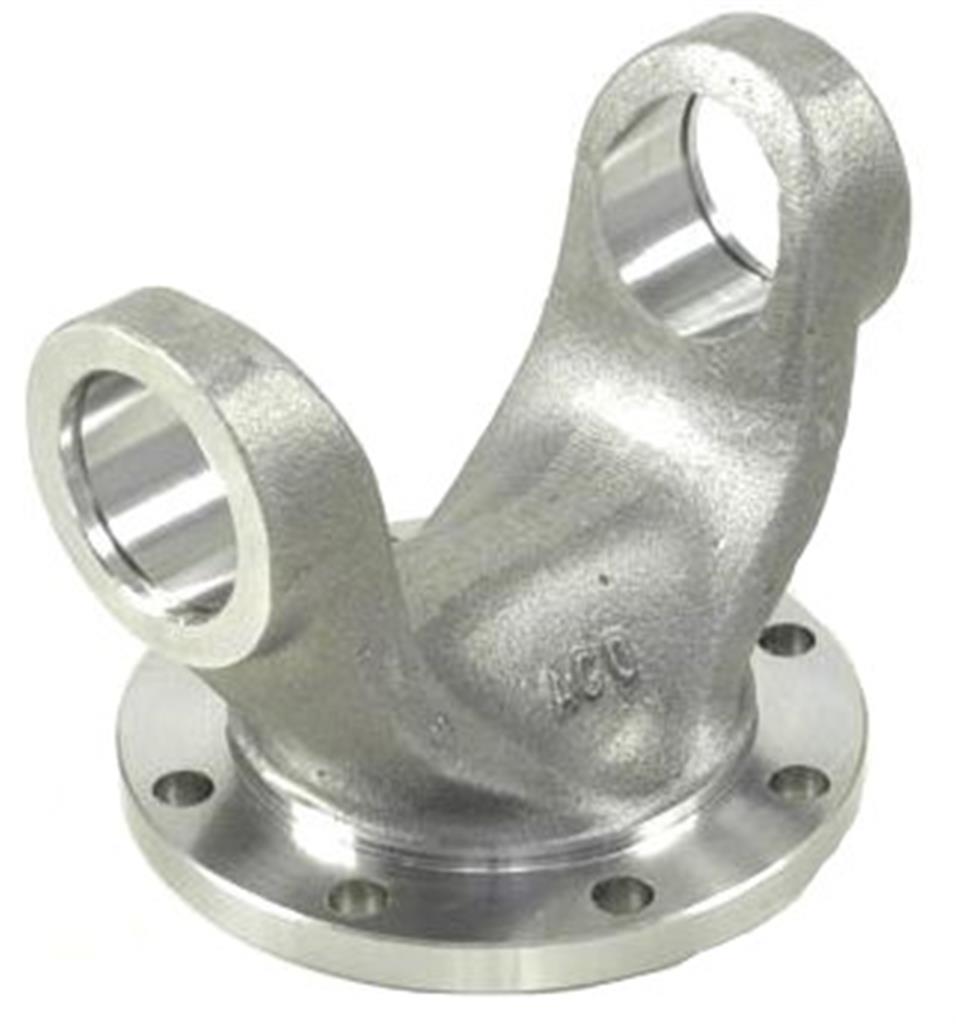

Description: FLANGE YOKE 8 HOLES
Applications:
- Cardan
Material: Steel
Original code: 41093D | SF04 | 3864100030 | S704 | 02418
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-372 | MERCEDES BENZ | Cardan | 150,00 | 102,00 | 160,90 | C-018 / 5-12062X | 48,00 | 12,00 | 8 |
