(S-369) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C025 / S501 / SK501

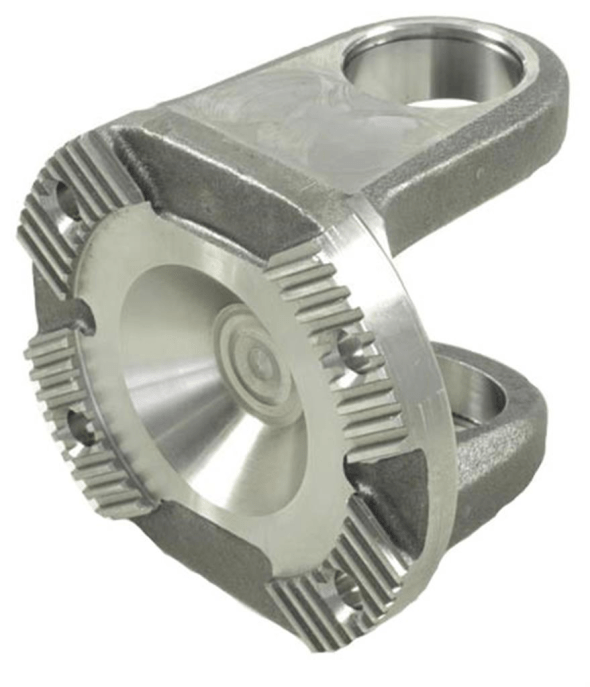

Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
- Cardan Entre Diferenciais
Material: Steel
Extra: DIFERENCIAIS: HDL7 / HL7/057 DS13 / HL/057 DS16 / HL7/058 DCS13
Original code: 35135 | SA32 | 3463501545 | 9423500145
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
|---|---|---|---|---|---|---|---|---|
| S-369 | MERCEDES BENZ | Cardan, Cardan Entre Diferenciais | 165,00 | 109,80 | 164,00 | C-025 / SPL1701X | 55,00 | 13,00 |
