S-367 Terminal de orelha
Embalagem com 1 peça
Peso: 6,05 (kg)

(S-367) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN, LINHA AMARELA e IVECO.

Assemble with: C023 / S636 / S309 / SC10363 / SP3009 / SP3010 / SP3050

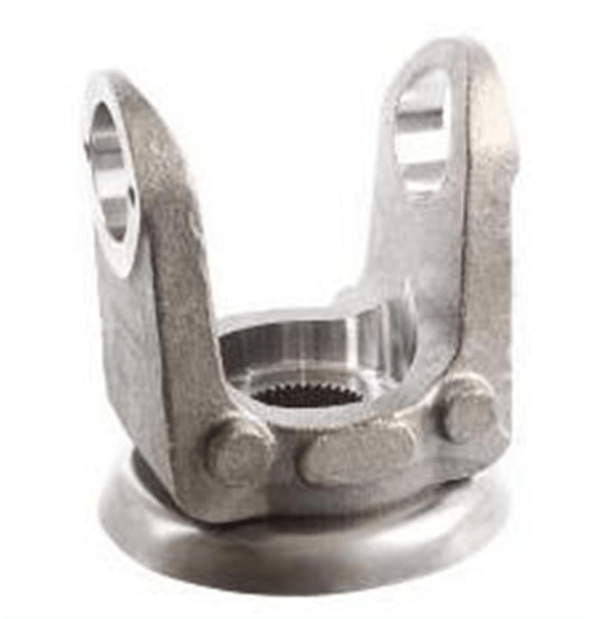

Description: END YOKE 39 SPLINE (E) WITH PROTECTOR

Applications:
- Diferencial

Extra: DIFERENCIAIS: MD145 / MD168 / RS145 / SAÍDA DO 1º DIFERENCIAL

manufacturers
FORD
VOLKSWAGEN
LINHA AMARELA
IVECO
Access catalog
VOLKSWAGEN

Código original: TMJ525283

Material: Aço

VW:
23220 24220 24250 26300 26310HD 26220
Constellation:
26260 Constellation 31260 Constellation Cosntellation 31310 31280 Costellation 31320 Constellation
VOLKSWAGEN:
Constellation 26280 Costellation 26320
FORD

Código original: TMJ525283

Material: Aço

Cargo:
Cargo 2322 Cargo 2422 Cargo 2425 Cargo 2630 Cargo 2622 Cargo 2623 Cargo 2626 Cargo 2628 Cargo 2629 Cargo 2631 Cargo 2632 Cargo 2831 Cargo 5031 Cargo 2932E Cargo 5032E Cargo 6332E
IVECO

Código original: 503353124 / 503356124

Material: Aço

IVECO:
260E25 6x4
Eurocargo:
Eurocargo 260E24
Tector:
Tector
Iveco:
Stralis 740S46TZ Tector 180E32 Strallis 740S41 Strallis 740S48
LINHA AMARELA

Material: Aço

LINHA AMARELA

Material: Aço

DINA:
Dimex D2630N
Terminal de orelha
Terminal de orelha
ReferenceCrossheadMeasure A (mm)Measure B (mm)Crosshead Diameter (mm)Stretch marksCrosshead Length (mm)Diameter A Smaller (mm)Diameter B Bigger (mm)
S-3675-279X15976,247,639 - E134,948,851,4
Reference
S-367
Crosshead
5-279X
Measure A (mm)
159
Measure B (mm)
76,2
Crosshead Diameter (mm)
47,6
Stretch marks
39 - E
Crosshead Length (mm)
134,9
Diameter A Smaller (mm)
48,8
Diameter B Bigger (mm)
51,4
