(S-358) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C002 / S366 / SC10358 / SC10366 / SP3001 / SP3012 / SP3015 / SP3022 / SP3022N

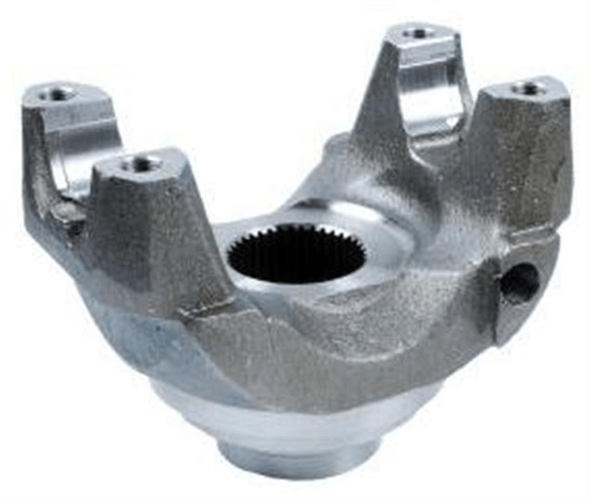

Description: END YOKE 38 SPLINE (E) THREAD M12X1,25MM
Applications:
- Cardan
Extra: DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF
Material: Aço
| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Thread | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S-358 | 5-515X | 141 | 62 | 49,2 | 38-E | M12 | 154 | 47,6 | 50,6 |
