(S-355) compatible with vehicles from the following manufacturers: MERCEDES BENZ e VOLVO.
Assemble with: C017 / S342 / S353 / S355N / S621 / S673 / SC10410 / SP3002

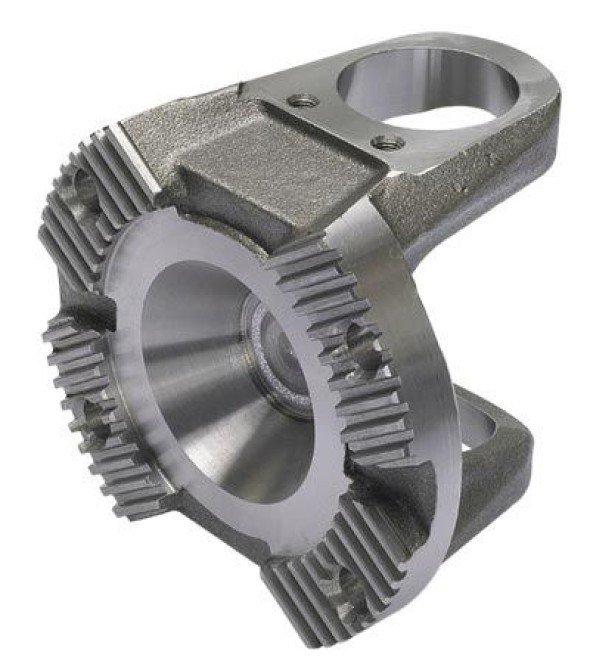

Description: FLANGE YOKE 4 HOLES
Applications:
- Cardan
Material: Steel
Original code: 801215 | 41069 | AT1075 | SF33 | 0004111145 | 140225
Original code: 801215 | 41069 | AT1075 | SF33 | 0004111145 | 140225
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
|---|---|---|---|---|---|---|---|---|
| S-355 | MERCEDES BENZ, VOLVO | Cardan | 150,00 | 79,00 | 138,50 | C-017 / SPL-140X | 49,20 | 13,00 |
