(S-354) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S312 / S391 / S618

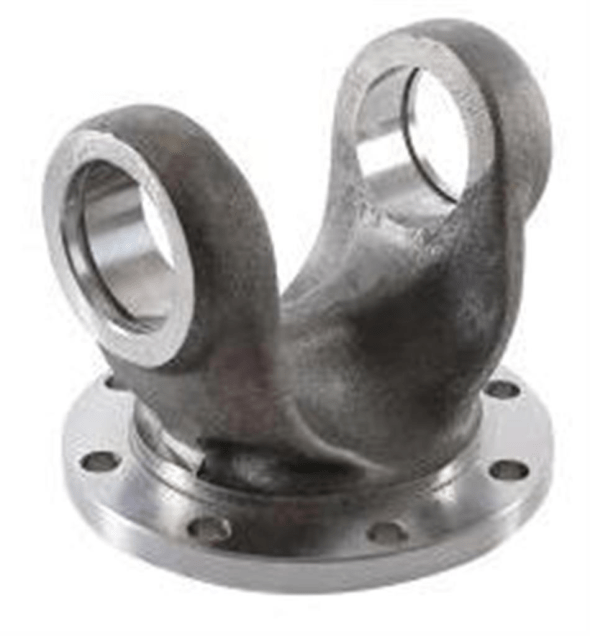

Description: FLANGE YOKE 8 HOLES
Applications:
- Cardan
Material: Steel
Extra: Nº ORIG. MB DA CRUZETA: 9734100031
Original code: 3954111811
Original code: 41093 | 801206 | AT1353 | SF05 | 3584111811 | 3957111811
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-354 | MERCEDES BENZ, MERCEDES BENZ | Cardan | 150,00 | 91,50 | 125,60 | 512219X | 48,00 | 12,00 | 8 |
