(S-349) compatible with vehicles from the following manufacturers: FORD, VOLKSWAGEN e AGRALE.
Assemble with: C008 / S311 / S351 / SC10346 / SC10358 / SP3004 / SP3006 / SP3007 / SP3016 / SP3031 / SP3085

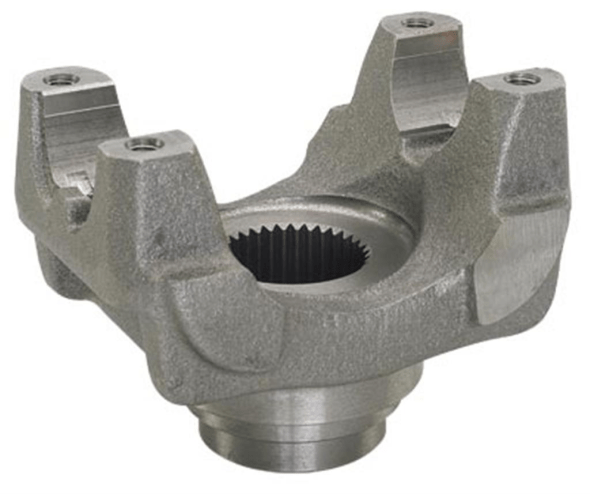

Description: END YOKE 34 SPLINE (E) THREAD 3/8"X24 F.P.P
Applications:
- Cardan
Extra: DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF
Código original: 2TG521211
Material: Nodular
Código original: 2TG521211
Material: Nodular
Código original: 93276288
Material: Nodular
| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Thread | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S-349 | SPL-90-1X | 109,5 | 55,7 | 41,3 | 34-E | 3/8" | 126 | 42,2 | 45,14 |
