(S-348) compatible with vehicles from the following manufacturers: MERCEDES BENZ e VOLKSWAGEN.
Assemble with: C016 / S303 / S304 / S308 / S334 / S619 / S620 / S688

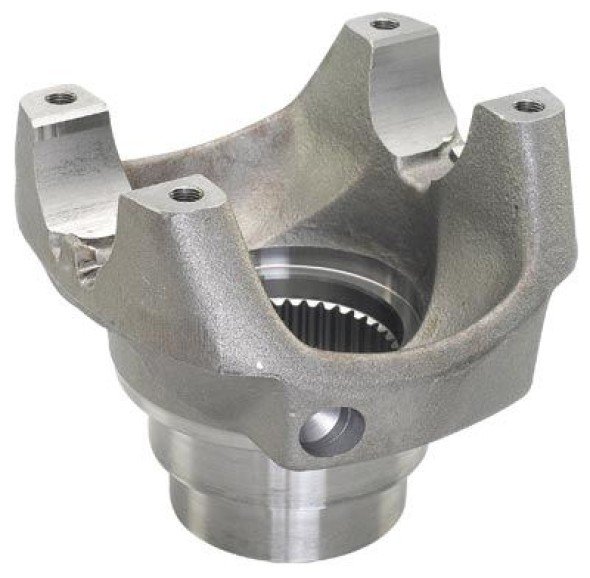

Description: END YOKE GEARBOX ZF 16S1650 38 SPLINE (E) THREAD M12X1,25MM
Applications:
- Cambio
Material: Steel
Extra: CAMBIO: 16S1650
Original code: 0002648445 | 2T2311809 | 25045811 | 0091338046 | 26265 | ST87
Original code: 0002648445 | 2T2311809 | 25045811 | 0091338046 | 26265 | ST87
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-348 | MERCEDES BENZ, VOLKSWAGEN | Cambio | 162,70 | 90,00 | C-016 / SPL250-1X | 163,00 | 60,00 | M12X1,25 | 38-E | 76,00 | 80,50 |
