(S-346) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C016 / S308 / S604 / S619 / SC10368

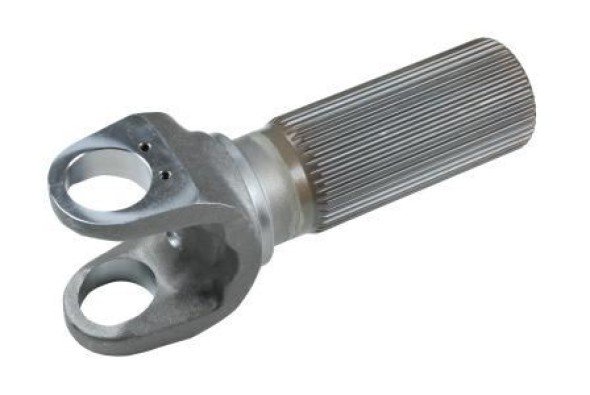

Description: YOKE SHAFT 38 SPLINE (E) LENGTHY
Applications:
- Cardan
Material: Steel
Original code: 2508251X | 41014

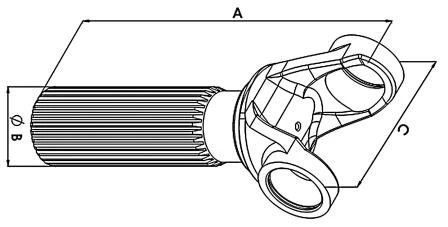

| Reference | Manufacturer(s) | Segment | A ( mm ) Altura base ao centro olhal |
B ( mm ) Ø Base das estrias |
C (mm) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|
| S-346 | MERCEDES BENZ | Cardan | 355,00 | 97,70 | 163,00 | C-016 / SPL250-1X | 60,00 | 38-E | 91,40 | 97,45 |
