(S-344) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C017 / S336 / S342 / S343 / S386 / S609 / S621 / S683 / SC10369 / SC10392 / SC10410 / SP3002

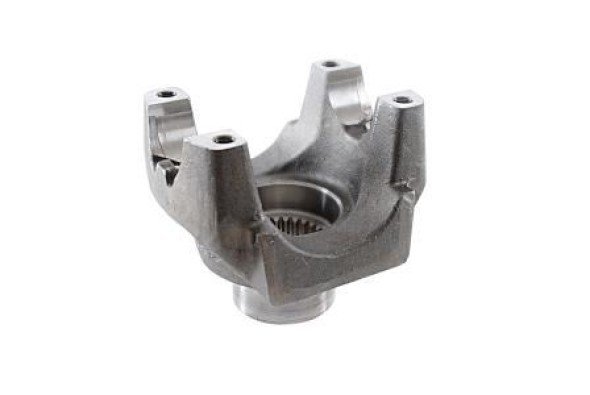

Description: END YOKE 26 SPLINE (E) THREAD M12X1,25MM
Applications:
- Diferencial
Material: Steel
Original code: 6953537045 | 6953526644 | 140412811 | FL1384 | ST33 | 801742 | 35265
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-344 | MERCEDES BENZ | Diferencial | 138,00 | 67,90 | C-017 / SPL140-1X | 138,60 | 49,20 | M12X1,25 | 26-E | 50,30 | 55,20 |
