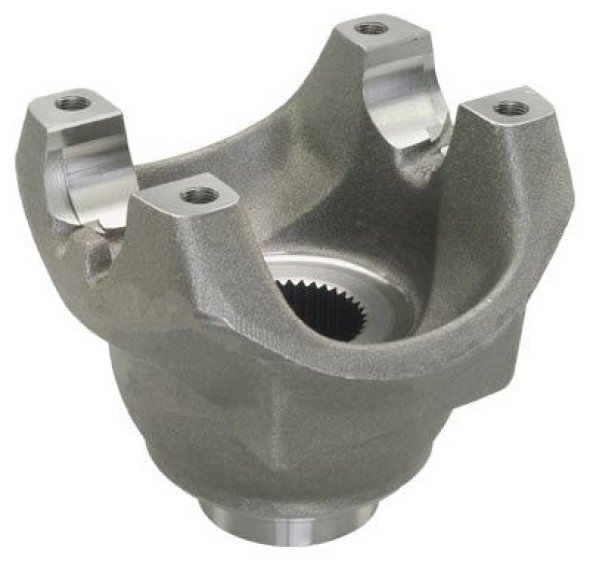

S-336 Terminal

Packaged with 1 piece

Weight: 6,65 (kg)

(S-336) compatible with vehicles from the following manufacturers: MERCEDES BENZ, VOLVO e INTERNATIONAL.

Assemble with: C017 / S342 / S343 / S386 / S609 / S621 / S683 / SC10369 / SC10392 / SC10410 / SP3002

Description: END YOKE 38 SPLINE (E) THREAD M12X1,25MM

Applications:
- Central

Material: Steel

Extra: DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF

Manufacturers

MERCEDES BENZ

VOLVO

INTERNATIONAL

Access catalog

MERCEDES BENZ

Código original: 0004110945 / 0004102230 / 0004110930
Material: Aço

Original code: 0004110945 | 0004102230 | 0004110930 | 20522875 | 41753 | 801738 | FL1095 | HTM619 | NC14038 | ST30 | S683 | 140413811 | 140415711

Ônibus:

1620 L1622E 2423K 1620E 1718

Atron:

Atego 1718 Atego 1419 Atego 1719 Atego 1726 Atego 2429 Atego 1725 Atego 1729 Atego 2425

LINHA MERCEDES BENZ:

Ônibus OF1722 Ônibus OF1721E

Atron:

Atron 2324 Atron 1719

LINHA MERCEDES BENZ:

Mercedes Benz Ônibus: O500U Mercedes Benz Ônibus: O500R

VOLVO

Código original: 20522875
Material: Aço

Original code: 0004110945 | 0004102230 | 0004110930 | 20522875 | 41753 | 801738 | FL1095 | HTM619 | NC14038 | ST30 | S683 | 140413811 | 140415711

Volvo:

VM240 VM270 VM220 VM 23240 VM 23210 VM 17240 VM 17210 VM260 VM230 VM210

Ônibus:

Ônibus B270F

INTERNATIONAL

Material: Aço

Original code: 0004110945 | 0004102230 | 0004110930 | 20522875 | 41753 | 801738 | FL1095 | HTM619 | NC14038 | ST30 | S683 | 140413811 | 140415711

Durastar:

Durastar 4400 4x2

INTERNATIONAL:

International 7600 International DURASTAR

Terminal do eixo cardan

Reference	Manufacturer(s)	Segment	A ( mm ) Altura total	B ( mm ) Ø Base do retentor	Cruzeta	Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas	Ø Cruzeta	Rosca	Quantidade Estrias	Ø A ( mm ) Menor	Ø B ( mm ) Maior
S-336	MERCEDES BENZ, VOLVO, INTERNATIONAL	Central	145,00	62,00	C-017 / SPL140-1X	138,60	49,20	M12X1,25	38-E	47,60	50,60
