(S-334) compatible with vehicles from the following manufacturers: MERCEDES BENZ, VOLKSWAGEN, VOLVO, INTERNATIONAL e AMERICANA.
Assemble with: C016 / S303 / S304 / S308 / S619 / S620 / S688 / SC10364 / SC10410 / SP3011 / SP3021

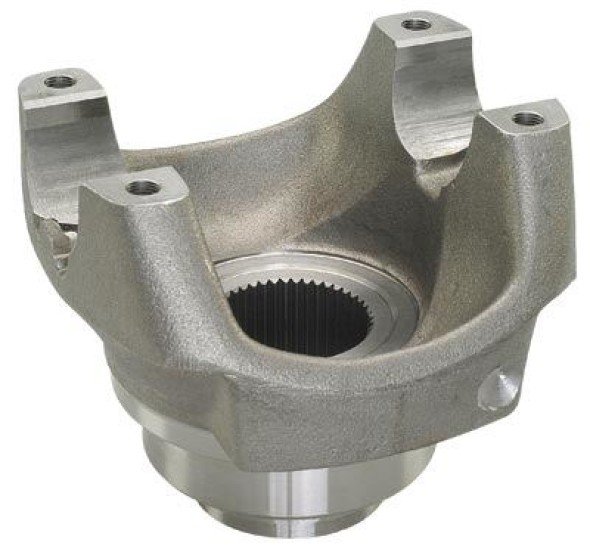

Description: END YOKE 46 SPLINE (E) THREAD M12X1,25MM
Applications:
- Central
Material: Steel
Extra: REFORÇADA / DAR APERTO NA PORCA DA PONTEIRA DE 100 A 120 KGF
Original code: 0004101630 | 20725144 | 2U2521165 | 25048711 | ST48 | 41002 | HTM602 | S304
Original code: 0004101630 | 20725144 | 2U2521165 | 25048711 | ST48 | 41002 | HTM602 | S304
Original code: 0004101630 | 20725144 | 2U2521165 | 25048711 | ST48 | 41002 | HTM602 | S304
Original code: 0004101630 | 20725144 | 2U2521165 | 25048711 | ST48 | 41002 | HTM602 | S304
Original code: 0004101630 | 20725144 | 2U2521165 | 25048711 | ST48 | 41002 | HTM602 | S304
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-334 | MERCEDES BENZ, VOLKSWAGEN, VOLVO, INTERNATIONAL, AMERICANA, INTERNATIONAL | Central | 156,00 | 73,20 | C-016 / SPL250-1X | 163,00 | 60,00 | M12X1,25 | 46-E | 57,50 | 60,20 |
