(S-332) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C008 / S305 / S311 / S350 / SC10358 / SP3004 / SP3006 / SP3007 / SP3016 / SP3031

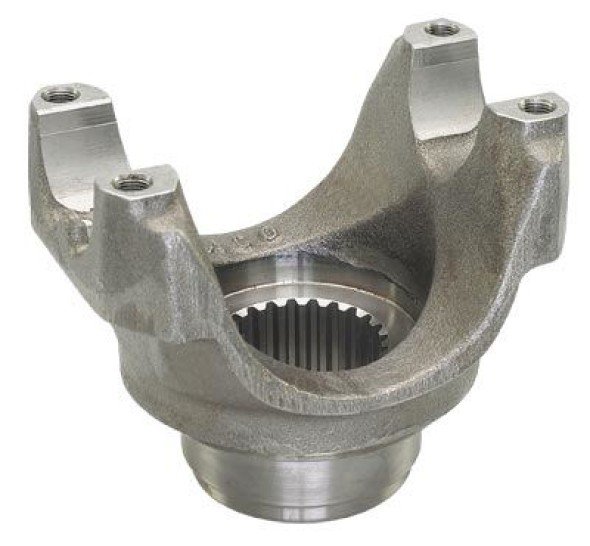

Description: END YOKE GEARBOX ZF S5-680 24 SPLINE (E) THREAD M10X1,0MM
Applications:
- Cambio
Material: Steel
Extra: CAMBIOS: S5-680 / S6-680 / S5-680SS0
Original code: 0002623445 | 1290395209 | 048961 | 26103 | 801702 | FL1379 | ST37
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-332 | MERCEDES BENZ | Cambio | 116,50 | 69,90 | C-008 / SPL90-1X | 126,00 | 41,30 | M10X1,00 | 24-E | 46,35 | 50,00 |
