(S-329) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C004 / S300 / S307 / S309 / SC10342 / SC10358 / SP3004 / SP3009 / SP3010 / SP3050

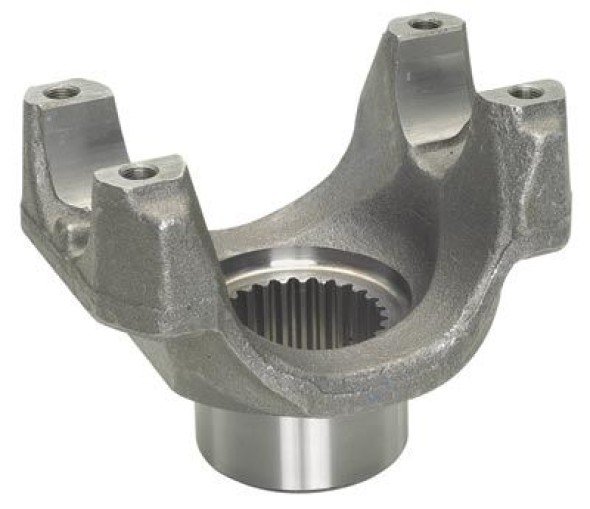

Description: END YOKE 26 SPLINE (E) THREAD M10X1,0MM
Applications:
- Diferencial
Extra: DIFERENCIAL: HL5/2 REDUZIDO / PEÇA COM PISTA PARA UM RETENTOR
Código original: 3863537045
Material: Aço
| Reference | Crosshead | Measure A (mm) | Measure B (mm) | Crosshead Diameter (mm) | Stretch marks | Thread | Crosshead Length (mm) | Diameter A Smaller (mm) | Diameter B Bigger (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S-329 | 5-438X | 120 | 67,9 | 47,6 | 26-E | M10 | 134,9 | 50,3 | 55,2 |
