(S-328) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: C004 / S300 / S307 / S309 / SC10342 / SC10358 / SP3004 / SP3009 / SP3010 / SP3050

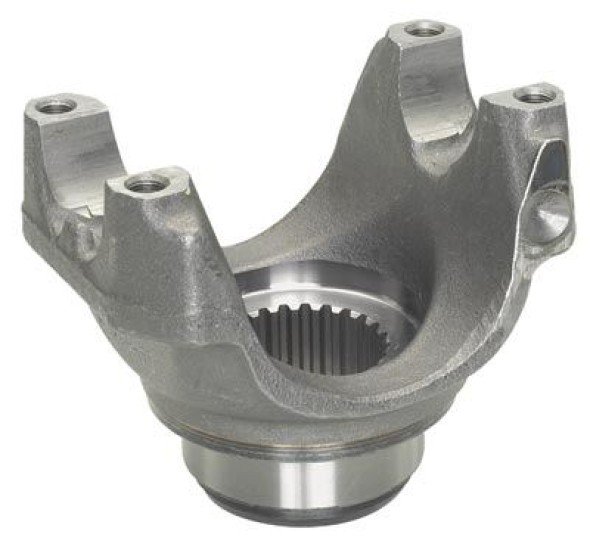

Description: END YOKE GEARBOX ZF S5-680 24 SPLINE (E) THREAD M10X1,0MM
Applications:
- Cambio
Material: Steel
Extra: CAMBIOS: S5-680 / S6-680 / S5680SSO
Original code: 0002647945 | 048791 | 1290395035 | 26096 | 801711 | FL1374 | ST41
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-328 | MERCEDES BENZ | Cambio | 120,00 | 69,90 | C-004 / 5-438X | 134,90 | 47,60 | M10X1,00 | 24-E | 46,35 | 50,00 |
