(S-327) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S314 / S337 / SP3023

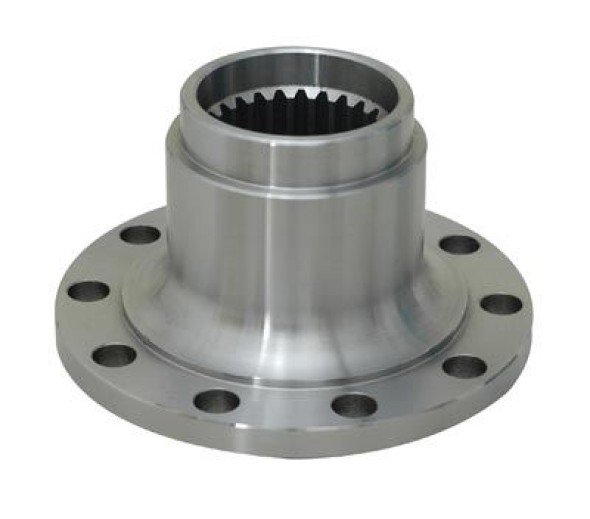

Description: FLANGE YOKE 26 SPLINE (E) 10 HOLES
Applications:
- Central
Material: Steel
Original code: 3874110446 | 3954100130 | 3944100130 | 41429 | SA38 | 01524
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø Base retentor |
B ( mm ) Ø do disco |
C ( mm ) Altura total |
Ø Furo |
Quant. Furos |
Quant. Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Menor |
|---|---|---|---|---|---|---|---|---|---|---|
| S-327 | MERCEDES BENZ | Central | 84,00 | 180,00 | 101,00 | 16,00 | 10 | 26-E | 67,10 | 70,00 |
