(S-326) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: C003

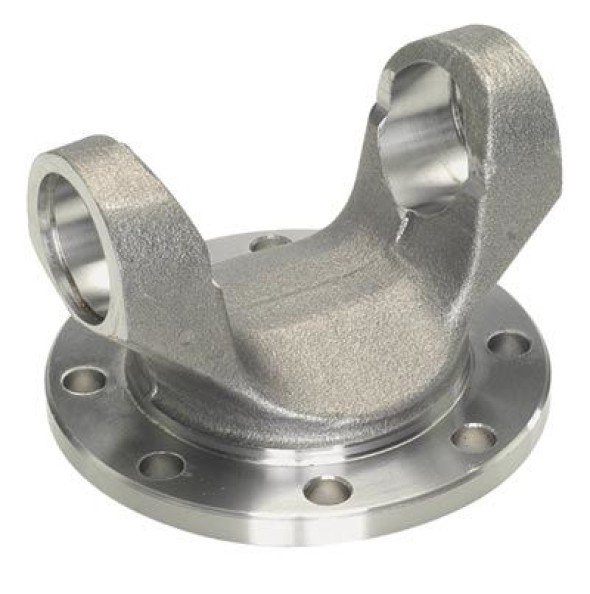

Description: FLANGE YOKE 8 HOLES
Applications:
- Cardan
Material: Steel
Original code: 41263 | SF30 | C32761 | 321299
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-326 | LINHA AMARELA | Cardan | 120,00 | 60,00 | 106,20 | C-003 / 5263X | 34,90 | 10,20 | 8 |
