(S-324) compatible with vehicles from the following manufacturers: LINHA AMARELA.
Assemble with: C002

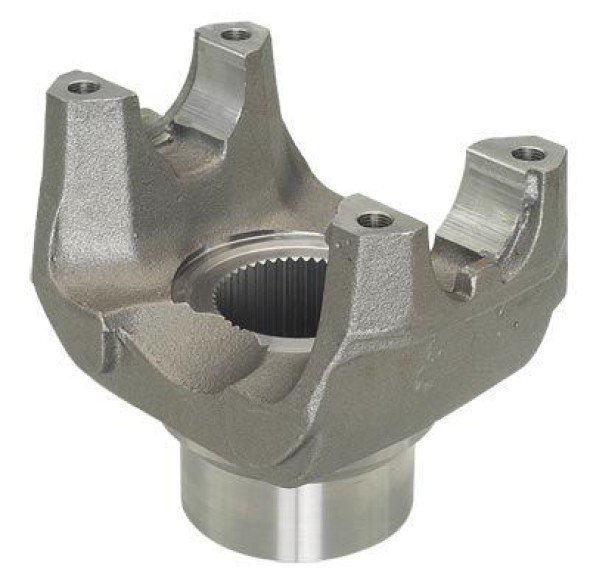

Description: END YOKE 46 SPLINE (E) THREAD M12X1,25MM
Applications:
- Diferencial
Material: Steel
Original code: 41462
| Reference | Manufacturer(s) | Segment | A ( mm ) Altura total |
B ( mm ) Ø Base do retentor |
Cruzeta |
Comprimento da Cruzetas sem Travas Comprimento da Cruzetas sem Travas |
Ø Cruzeta |
Rosca |
Quantidade Estrias |
Ø A ( mm ) Menor |
Ø B ( mm ) Maior |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S-324 | LINHA AMARELA | Diferencial | 151,50 | 85,00 | C-002 / 5-515X | 157,00 | 49,20 | M12X1,25 | 46-E | 57,50 | 60,20 |
