(S-322) compatible with vehicles from the following manufacturers: MERCEDES BENZ.
Assemble with: S338 / S391

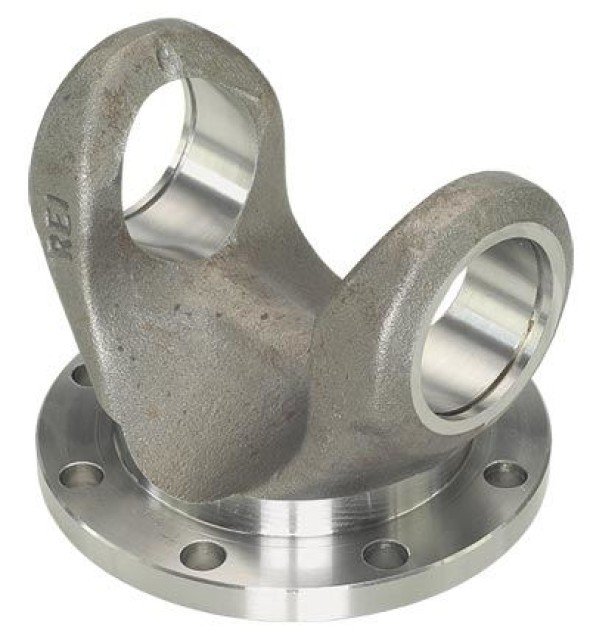

Description: FLANGE YOKE 8 HOLES
Applications:
- Cardan
Material: Steel
Original code: 41093A | SF06 | 3644110011
| Reference | Manufacturer(s) | Segment | A ( mm ) Ø do disco |
B ( mm ) Altura base ao centro do olhal |
C ( mm ) Comprimento cruzeta sem travas |
Cruzeta |
Ø Cruzeta |
Ø Furo |
Quant. Furos |
|---|---|---|---|---|---|---|---|---|---|
| S-322 | MERCEDES BENZ | Cardan | 150,00 | 82,00 | 133,00 | 512924X | 52,10 | 12,00 | 8 |
